Panasonic MSMJ082G1V MINAS A5 Family Servo Motor 20-bit Incremental system
24 Months Warranty Panasonic MSMJ082G1V Servo Motor 20-bit Incremental system
24 Months Warranty
Rotary encoder: specifications
2500 P/r Incremental
item no.:
MUMA012P1SPayment:
T/Tproduct origin:
Japanmin order :
1shipping port:
XiamenOur commitment
YUGUAN gives you a 2 year warranty on Panasonic series we sell.
1.If there has any product quality problems within 2 months since the receipt of goods. we will provide a service of return OR Replacement.
2.Shipping cost &repair cost by us within 1 year warranty.
3.Shipping cost by buyer, repair cost by us within 2 year warranty.
Please see our other listings for many other parts. Don't see what you need, or have a question? Please contact us.
Each item has been checked and in good condition before shipping.
Description

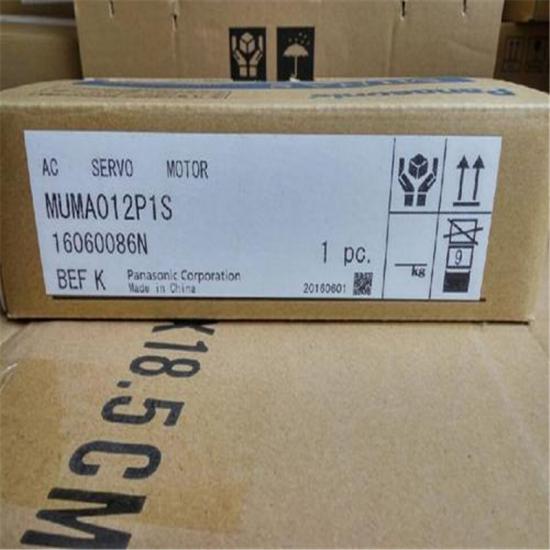

Model Number: MUMA012P1S
| Item | Specifications |
|---|---|
| Part Number | MUMA012P1S |
| Type | Ultra low inertia |
| Enclosure | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| For more details | Please Contact us |
| Voltage specifications | 200 V |
| Rated output | 100 W |
| Rated current (A (rms)) | 1.0 |
| Holding brake | without |
| Mass (kg) | 0.50 |
| Oil seal | without |
| Shaft | Key-way, center tap |
| Rated torque (N ⋅ m) | 0.32 |
| Momentary Max. peak torque (N ⋅ m) | 0.95 |
| Regenerative brake frequency (times/min) |
Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P2891 |
| About regenerative brake frequency |
Note) 1. Regenerative brake frequency represents the frequency of the motor's stops from the rated speed with deceleration without load. ⋅ If the load is connected, frequency will be defined as 1/( m + 1 ), where m = ( load moment of inertia ) / ( rotor moment of inertia ). ⋅ When the motor speed exceeds the rated speed, regenerative brake frequency is in inverse proportion to the square of ( running speed / rated speed ). ⋅ Power supply voltage is AC115 V ( at 100 V of the main voltage ). If the supply voltage fluctuates, frequency is in inverse proportion to the square of ( Running supply voltage /115 ) relative to the value in the table. ⋅ When regeneration occurs continuosly such cases as running speed frequently changes or vertical feeding, consult us or a dealer. Note) 2. If the effective torque is within the rated torque, there is no limit in regenerative brake. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 5000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.032 |
| Recommended moment of inertia ratio of the load and the rotor | 30 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Note) 3. Consult us or a dealer if the load moment of inertia exceeds the specified value. |
| Rotary encoder: specifications | 2500 P/r Incremental |
| Rotary encoder: Resolution |
10000 |
Why choose us?
1) Brand-New, Unused, Unopened, Undamaged product with reasonable price.
2) 100% full New! – Original Factory Seal !
3) Package: Original packing with cartons.
4) Delivery time: Shipped in 3 days after payment.
5) We are control system parts Industrial products supplier and Your Best Business partner.
Our main products as follows:
Allen Bradley SLC 500 1746,1747,1756 series MODULE,
Allen Bradley 2098 series, Ultra 3000 Servo Drive
ARO Diaphragm Pump Repair Kit
WILDEN Diaphragm Pump Repair Kit
Mitsubishi PLC for FX1S, FX1N, FX2N, FX3U, FX3G, A series and Q series, function modules;
Mitsubishi Inverter for FR-A740, A720, F740, F720, E740, E720, E720S, D740,D720S series;
Mitsubishi HMI for GOT1000, GT15, F900 A900 series;
Mitsubishi Servo for MR-E, MR-J2S, MR-J3 series;
Mitsubishi parts such as battery, connectors, cables, CCLINK Module, resistor.
GE IC693 series, IC694 series,IC695 series,IC697 series,IC200 series,
Kollmorgen Servo driver
Beckhoff servo driver
Panasonic PLC for FP0, FPX, FP2 series;
Panasonic Inverter for VF0, VF100 series;
Panasonic Servo for A4, A5 series.
KEYENCE→ Sensors, Bar Code Readers, PLC, Vision System, Microscopes, Ionisers, Measuring Instruments
Yaskawa SERVO MOTOR, SERVO DRIVE
Schneide PLC MODULE
Siemens Contactor, Circuit breaker, Thermal relay, Overload protection relay, Temperature controller, Disconnect switch max, Siemens I/O Module.
REXROTH Hydraulic Pumps & Motors, Hydraulic Valves, Pump Parts.
THANK YOU SO MUCH!
