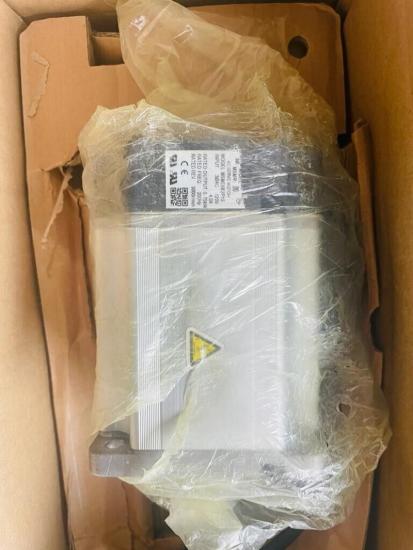

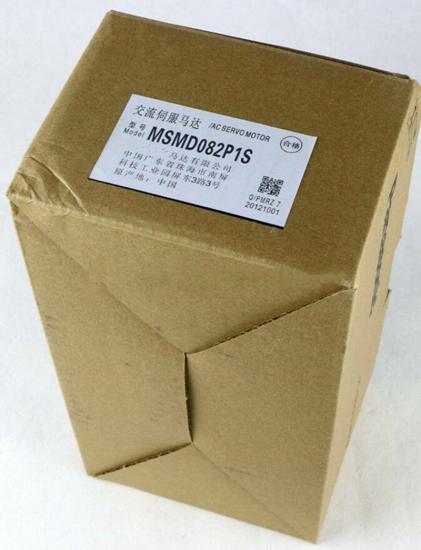

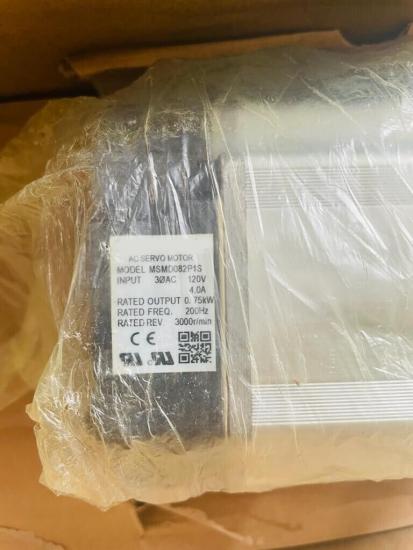

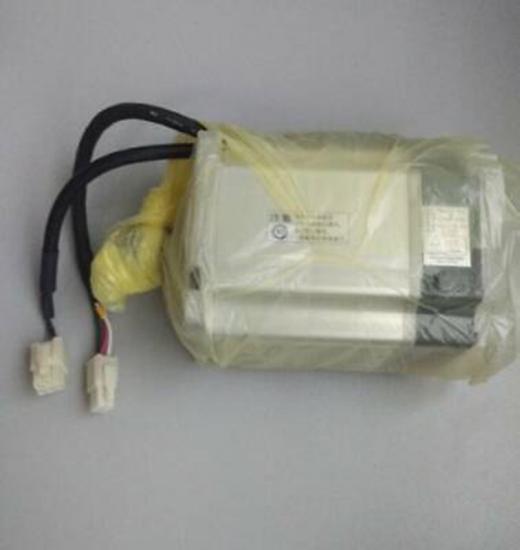

1PC Panasonic MSMD082P1S AC Servo MOTOR MINAS A4 SERIES 3 PHASE 120 VAC 4 AMP 750 W 200 HZ MSMD082P1S New In Box Fast Ship With One Year Warranty
item no.:
MSMD082P1SPayment:
T/T, Credit card, PayPalproduct origin:
Japanmin order :
1shipping port:
Xiamen1PC Panasonic MSMD082P1S AC Servo MOTOR MINAS A4 SERIES 3 PHASE 120 VAC 4 AMP 750 W 200 HZ MSMD082P1S New In Box Fast Ship With One Year Warranty
Our commitment
YUGUAN gives you a 2 year warranty on Panasonic series we sell.
1.If there has any product quality problems within 2 months since the receipt of goods. we will provide a service of return OR Replacement.
2.Shipping cost &repair cost by us within 1 year warranty.
3.Shipping cost by buyer, repair cost by us within 2 year warranty.
Please see our other listings for many other parts. Don't see what you need, or have a question? Please contact us.
Each item has been checked and in good condition before shipping.
Description
Item
Specifications
Part Number
MSMD082P1S
Details
Low inertia, Lead wire type, IP65
Family Name
MINAS A4 Family
Series
MSMD Series
Type
Low inertia
Protection class
IP65
About Enclosure
Except rotating portion of output shaft and leadwire end.
Environmental Conditions
For more details, please refer to the instruction manual.
Flange sq. dimension
80 mm sq.
Flange sq. dimension (Unit:mm)
80
Motor lead-out configuration
Lead wire
Motor encoder connector
Lead wire
Voltage specifications (V)
200
Rated output (W)
750
Holding brake
without
Mass (kg)
2.3
Oil seal
without
Shaft
Key-way, Shaft end, Center tap
Rated torque (N ⋅ m)
2.4
Momentary Max. peak torque (N ⋅ m)
7.1
Max. current (A (o-p))
17.0
Regenerative brake frequency (times/min)
Without option :No limit
With option : No limit
Option (External regenerative resistor) Part No. : DV0P4283
Rated rotational speed (r/min)
3000
Rated rotational Max. speed (r/min)
4500
Moment of inertia of rotor ( x10-4 kg ⋅ m²)
0.87
Recommended moment of inertia ratio of the load and the rotor
20times or less
Rotary encoder: specifications
2500 P/r Incremental system
Remark
1. About Regenerative brake frequency
the frequency of the motor's stops from the rated speed with deceleration without load.
. If the load is connected, frequency will be defines as 1/(m+1), where m=load moment of inertia/rotor moment of inertia.
・ When the motor speed exceeds the rated speed, regenerative brake frequency is in inverse proportion to the square of (running speed/rated speed).
・Power supply voltage is AC115 V（at 100 V of the main voltage）、AC230 V（at 200 V of the main voltage).
If the supply voltage fluctuates, frequency is in inverse proportion to the square of (Running supply voltage) relative to the value in the table.
・When regeneration occurs continuously such cases as running speed frequently changes or vertical feeding, consult us or a dealer.
2. About unlimited regenerative brake frequency
If the effective torque is within the rated torque, there is no limit in generative brake.
3. About recommended moment of inertia ratio of the load and the rotor
Consult us or a dealer if the load moment of inertia exceeds the specified value.
For details, check the catalog and instruction manuals.
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 686 |
| During assembly: Thrust load A-direction (N) | 294 |
| During assembly: Thrust load B-direction (N) | 392 |
| During operation: Radial load P-direction (N) | 392 |
| During operation: Thrust load A, B-direction (N) | 147 |
