Mitsubishi Melsec CC-Link Optical Repeater AJ65BTRPI10B

Part Number AJ65BTRP110B

Configured Specifications

Type Repeater Control Type Network Varieties CC-Link

Representative Standard CE / UL / CUL Classification B Part

Note Used as a set with AJ65BT-RPI-10A (A part). 156 k/625 k/2.5 Mbps, Conforming standard: UL/cUL CE (EMC) RoHS 6

Product Specifications

Part Numbers

CC-Link Repeater Unit Space Optical Repeater Unit Specifications

CC-Link Space Optical Repeater: related image

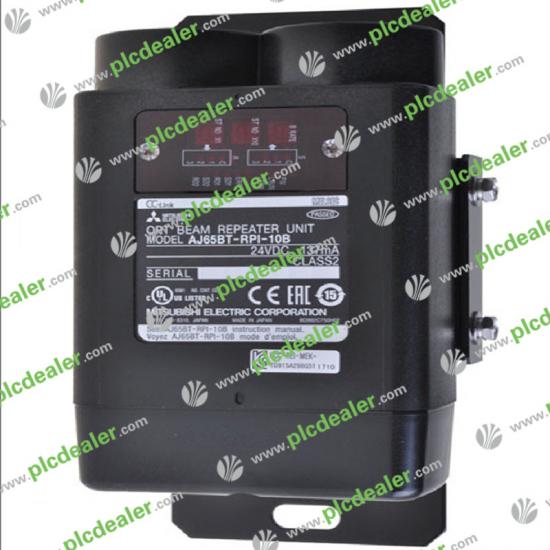

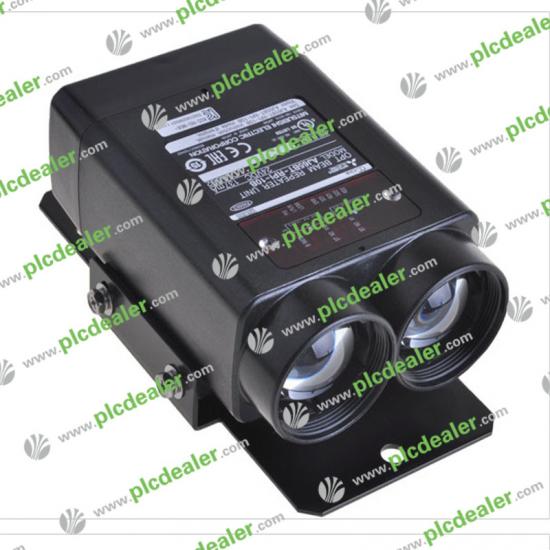

AJ65BT-RPI-10A/AJ65BT-RPI-10B external appearance

AJ65BT-RPI-10A/AJ65BT-RPI-10B dimensional drawing unit: mm

Product Name Type Name Content Number Of Occupied Points Station Type

Space Optical Repeater Unit AJ65BT-RPI-10A AJ65BT-RPI-10A and AJ65BT-RPT-10B are used as a set.

Compatible with 156 k / 625 k / 2.5 Mbps,

Spatial transmission from 0 to 100 m with infrared rays

Optical communication status monitor function -/1 Remote I/O with one station occupied

AJ65BT-RPI-10B -/1 Remote I/O with one station occupied

Common Items

Optical Communication Specifications -

Optical Transmission Distance 0 to 100 m

Directivity Angle When the optical transmission distance is from 0 to 50 m: full angle of 2°

When the optical transmission distance is from 50 to 100 m: full angle of 1°

Modulation Frequency A Unit → B Unit: 36±3 MHz

B Unit → A Unit: 44±2.5 MHz

Modulation Method FSK

CC-Link Specifications -

Transmission Speed 156 kbps / 625 kbps / 2.5 Mbps (Selectable)

Maximum Number Of Segment Connection Levels AJ65BT-RPI only: 2 levels

Combination of AJ65BT-RPI and AJ65SBT-RPT: 3 levels

Combination of AJ65BT-RPI, AJ65SBT-RPS, AJ65SBT-RPG, AJ65FBTA-RPH and AJ65BTS-RPH: 2 levels

Maximum Transmission Distance Of Each Segment Varies depending on the transmission speed.

Maximum Number Of Connected Devices 64 devices

Number Of Occupied Stations Monitor Function Used: 1 station

Monitor Function Not Used: 0 station

Dielectric Strength Between all DC external terminals at once and earth: 500 V AC for 1 minute

Insulation Resistance Between all DC external terminals at once and earth: 10 MΩ or more at 500 V DC on an insulation resistance meter

Unit Power Supply Voltage 20.4 to 26.4 V DC

Current 137 mA (When TYP. 24 V DC)

External Dimensions Height (H) 100.0 mm

Width (W) 161.0 mm

Depth (D) 57.5 mm

Mass 0.5 kg

Ambient Operating Temperature 0 to 50℃

Ambient Storage Temperature -20 to 75℃

Ambient Operating Humidity 10 to 90% RH, no condensation

Ambient Storage Humidity 10 to 90% RH, no condensation

Vibration Resistance JIS B 3502, IEC 61131-2 compliant Under Intermittent Vibration Frequency: 5 to 8.4 Hz, Single amplitude: 3.5 mm

Frequency: 8.4 to 150 Hz, Constant acceleration: 9.8 m/s2

Sweeps: 10 sweeps in each direction of X, Y and Z

Under Continuous Vibration Frequency: 5 to 8.4 Hz, Single amplitude: 1.75 mm

Frequency: 8.4 to 150 Hz, Constant acceleration: 4.9 m/s2

Impact Resistance JIS B 3502, IEC 61131-2 compliant (490 m/s2, 10 times in each direction of X, Y and Z)

Operating Atmosphere There shall be no significant amount of dust, and no corrosive gas.

Ambient Illuminance 10,000 lx or less (not subject to direct sunlight)

Cooling Method Self-cooling

Operating Altitude 0 to 2,000 m

Installation Location Indoor

Overvoltage Category II or lower

Pollution Degree 2 or less

Basic Information

Type Repeater Control Type Network Varieties CC-Link Representative Standard CE / UL / CUL
