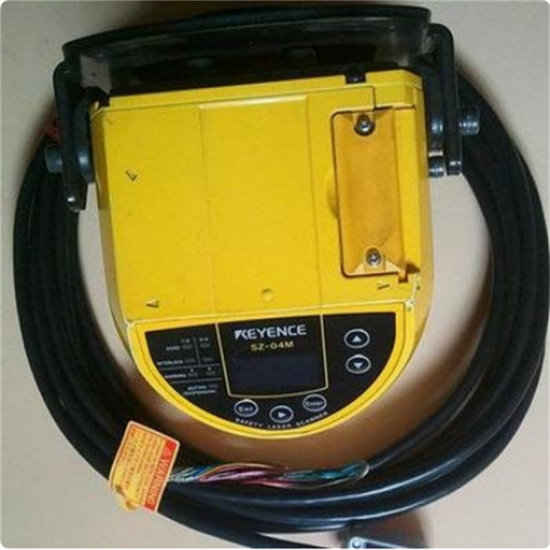

Keyence SZ-04M /SZ04M Safety Laser Scanner 24VDC

2 year warranty Keyence SZ-04M /SZ04M Safety Laser Scanner 24VDC
  • item no.:

    SZ-04M
  • Payment:

    T/T
  • Price:

    $3078
  • product origin:

    Japan
  • min order :

    1
  • shipping port:

    Xiamen
  • Product Details
Model:SZ-04M /SZ04M

SPECIFICATIONS

Select Language EnglishEnglish

Model

SZ-04M

Type

Multi-function type

Detection
capability

Minimum detectable object size

Diameter 30 mm 1.18"/40 mm 1.58", 50 mm 1.97", 70 mm 2.76", 150 mm 5.91" (depends on the setting)
Reflectance 1.8% min., Speed 1.6 m/s 5.25 ft/s max.

Detectable angle

270° (-45° to 225°)

Response time
(ON to OFF)

General scan cycle (Scan cycle A)

60 ms (2 scans) to 480 ms (16 scans)

Specific scan cycle (Scan cycle B)

66 ms (2 scans) to 528 ms (16 scans)

Response time
(OFF to ON)

General scan cycle (Scan cycle A)

Response time of ON to OFF +125 ms

Specific scan cycle (Scan cycle B)

Max.
protection
zone

Minimum detectable object size: 70 mm 2.76"/150 mm 5.91"

4.2 m 13.78' (-5° to 185°), 2.8 m 9.19' (-45° to -5°, 185° to 225°)

Minimum detectable object size: 50 mm 1.97"

3.0 m 9.84' (-5° to 185°), 2.0 m 6.56' (-45° to -5°, 185° to 225°)

Minimum detectable object size: 40 mm 1.58"

2.4 m 7.87' (-5° to 185°), 1.6 m 5.25' (-45° to -5°, 185° to 225°)

Minimum detectable object size: 30 mm 1.18"

1.8 m 5.91' (-5° to 185°), 1.2 m 3.94' (-45° to -5°, 185° to 225°)

Max.
warning zone
(non safety
related)

Minimum detectable object size: 70 mm 2.76"/150 mm 5.91"

10.0 m 32.18' (-5° to 185°), 7.0 m 22.97' (-45° to -5°, 185° to 225°)*1

Minimum detectable object size: 50 mm 1.97"

7.5 m 24.61' (-5° to 185°), 5.0 m 16.4' (-45° to -5°, 185° to 225°)*1

Minimum detectable object size: 40 mm 1.58"

6.0 m 19.69' (-5° to 185°), 4.0 m 13.12' (-45° to -5°, 185° to 225°)*1

Minimum detectable object size: 30 mm 1.18"

4.5 m 14.76' (-5° to 185°), 3.0 m 9.84' (-45° to -5°, 185° to 225°)*1

Additional safety distance

100 mm 3.94"*2

Light source

Type, wavelength

Infrared laser diode, 905 nm

Laser class

Class 1 Laser Product (IEC 60825-1, FDA (CDRH) Part 1040.10 *3)

OSSD output

Output

PNP or NPN (Selectable according to the connector cable)
4 outputs

Max. load current

500 mA*4

Residual voltage (during ON)

Max. 2.5 V (with a cable length of 5 m 16.4')

OFF-state voltage

Max. 2.0 V (with a cable length of 5 m 16.4')

Leakage current

Max. 1 mA*5

Max. capacitive load

2.2 µF (with a load resistance of 100Ω)

Load wiring resistance

Max. 2.5Ω*6

Input
(safety-related)

Input resistance

4.4 kΩ (for Input 1, 3, 4, and 5)
2.2 kΩ (for Input 2 and 6)

Non
safety-related
output
(AUX output)

Output

PNP/NPN totem pole output
6 outputs

Max. load current

50 mA

Residual voltage (during ON)

Max. 2.5 V (with a cable length of 5 m 16.4')

Muting lamp
output

(AUX6 output can be assigned for the
muting lamp output)

Can be connected to the
incandescent lamp
(24 V DC, 1 to 5.5 W) and LED
lamp (load current 10 to 230 mA)

Cable length

30 m 98.43' or less *7

Approved
standards

EMC

EMS

IEC61496-1, EN61496-1, UL 61496-1

EMI

EN55011 Class A, FCC Part15B Class A

Safety

IEC61496-1, EN61496-1, UL 61496-1 (Type 3 ESPE), IEC61496-3, EN61496-3 (Type 3 AOPDDR)
IEC61508, EN61508, IEC62061, EN62061 (SIL2), EN ISO13849-1:2015 (PL d, Category 3) UL508, UL1998

Rating

Power voltage

When using a converter power supply: 24 VDC ±10 %, Ripple (P-P) 10 % or less
When using a battery: 24 VDC +20 %/-30 %

Power consumption

Max. 9.5 W (without load)
Max. 50 W (with load)

Environmental resistance

Enclosure rating

IP65 (IEC60529)*8

Ambient light

Incandescent lamp: 1,500 lux or less*9

Operating ambient temperature

-10 to +50 °C 14 to 122 °F (No freezing)

Storage temperature

-25 to +60 °C -13 to 140 °F (No freezing)

Operating relative humidity

35 to 85 % RH (No condensation)

Storage relative humidity

35 to 95 % RH

Vibration resistance

10 to 55 Hz, Double amplitude 0.7 mm 0.03", 20 sweeps in each of the X, Y, and Z directions

Shock resistance

100 m/s2 (Approx. 10 G), 16 ms pulse, 1,000 times in each of the X, Y, and Z directions

Material

Main unit case

Aluminum die casting, SPHC (Bottom)

Window

Polycarbonate

Weight

Approx. 1.6 kg




YUGUAN gives you a 1 year warranty onKEYENCE series we sell.

1.If there has any product quality problems within 2 months since the receipt of goods. we will provide a service of return OR Replacement.

3.Shipping cost by buyer, repair cost by us within 1 year warranty.





Our main products as follows:

Allen Bradley  SLC 500 1746,1747,1756 series MODULE,

Allen Bradley 2098 series, Ultra 3000 Servo Drive

ARO Diaphragm Pump Repair Kit

WILDEN Diaphragm Pump Repair Kit

Mitsubishi PLC for FX1S, FX1N, FX2N, FX3U, FX3G, A series and Q series, function modules;

Mitsubishi Inverter for FR-A740, A720, F740, F720, E740, E720, E720S, D740,D720S series;

Mitsubishi HMI for GOT1000, GT15, F900 A900 series;

Mitsubishi Servo for MR-E, MR-J2S, MR-J3 series;

Mitsubishi parts such as battery, connectors, cables, CCLINK Module, resistor.

GE IC693 series, IC694 series,IC695 series,IC697 series,IC200 series,

Kollmorgen Servo driver

Beckhoff servo driver

Panasonic PLC for FP0, FPX, FP2 series;

Panasonic Inverter for VF0, VF100 series;

Panasonic Servo for A4, A5 series.

KEYENCE→ Sensors, Bar Code Readers, PLC, Vision System, Microscopes, Ionisers, Measuring Instruments

Yaskawa SERVO MOTOR, SERVO DRIVE

Schneide PLC MODULE

Siemens Contactor, Circuit breaker, Thermal relay, Overload protection relay, Temperature controller, Disconnect switch max, Siemens I/O Module.
